Bus duct also known as Busway, is the key part of electrical power distribution system, provides an alternative means of conducting electricity. Bus ducts are used both in commercial and industrial settings to conduct electricity to power cables, which is also known s cable bus.
A Bus duct is simply a sheet metal duct containing busbars which is either Aluminuim or copper, may be metallic strip or bars to conduct the electrical current, in a grounded Metal enclosure.
Bus duct is easy to maintain and flexible, helping to accommodate changing load requirements.

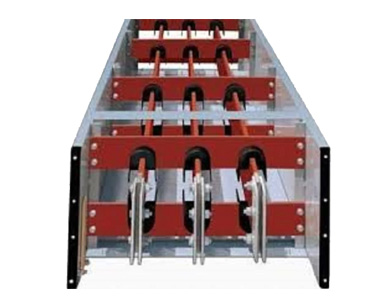

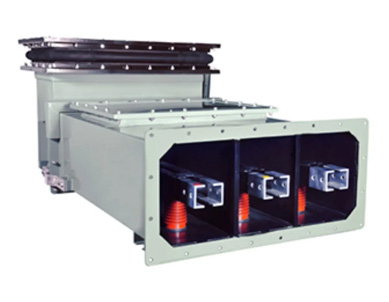

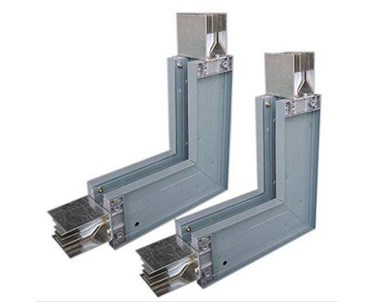

High Voltage (HV) Bus Ducts are critical components in electrical power systems, used to conduct electrical power within industrial plants, substations, and large commercial buildings. They provide a safe and efficient way to transfer high voltage electrical power from one part of a system to another.
| Material | Aluminium |
| Current | 6000 Amps |
| Voltages rated | 12 KV |
| Frequency | 50 Hz/ 60Hz |
| Phase segregation | Aluminium |
| Degree of Protection | IP 55 |
| Standard | IS 8084 / IEC 298 / IEEE / C37.23 |
| Insulator | Epoxy |
| Busbar | Aluminium |
| Busbar Finish | Matt black |
| Basic Insulation level | 35 KV / 75 KV |
| Enclosure Finish | Powder Quoted |
| SC Current | 180 KA Peak |
| Enclosure | Mild Steel |

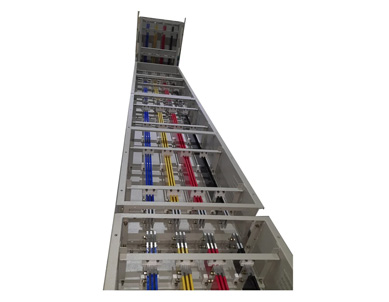

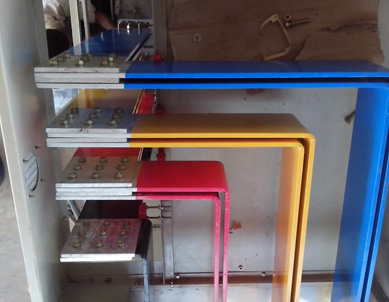

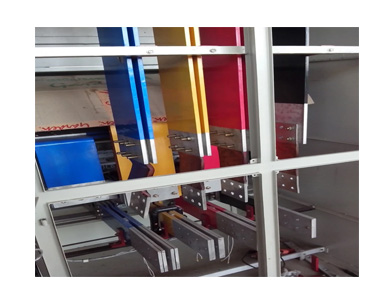

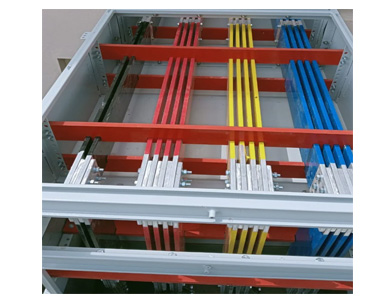

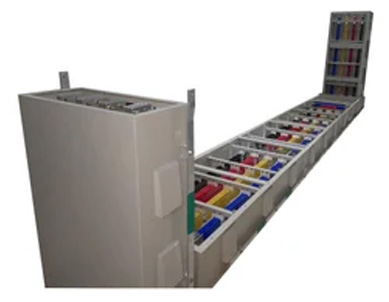

Low Voltage (LV) Bus Ducts are essential components in electrical distribution systems, designed to carry electrical power at lower voltage levels compared to High Voltage (HV) bus ducts. They are used extensively in commercial, industrial, and residential settings for efficient power distribution.
The Technical details are,
| Compliance Of Standards | IS 8623 / IEC-439 |
| Voltages rated | 1000 V AC /3200 V DC |
| Amp Rating | 5000 Amps |
| Degree of Protection | IP55 |
| Standards | IS 8623 / IEC-439 |
| Busbar Finish | Sleeved |
| Basic Insulation level | 3 KV rms |
| Frequency | 50 Hz/60 Hz |
| SC Current | 150 KA Peak |
| Enclosure Finish | Painted |
| Thermoset Insulator Material | Glass Reinforced |
| Enclosure | Mild Steel / Aluminium Alloy / Stainless Steel |
| Busbar | Aluminium / Copper |
